300KG Electric Vacuum Lifter with 230mm Suction Cup | VSL300B23

Overview of Electric Vacuum Lifter VSL300B23

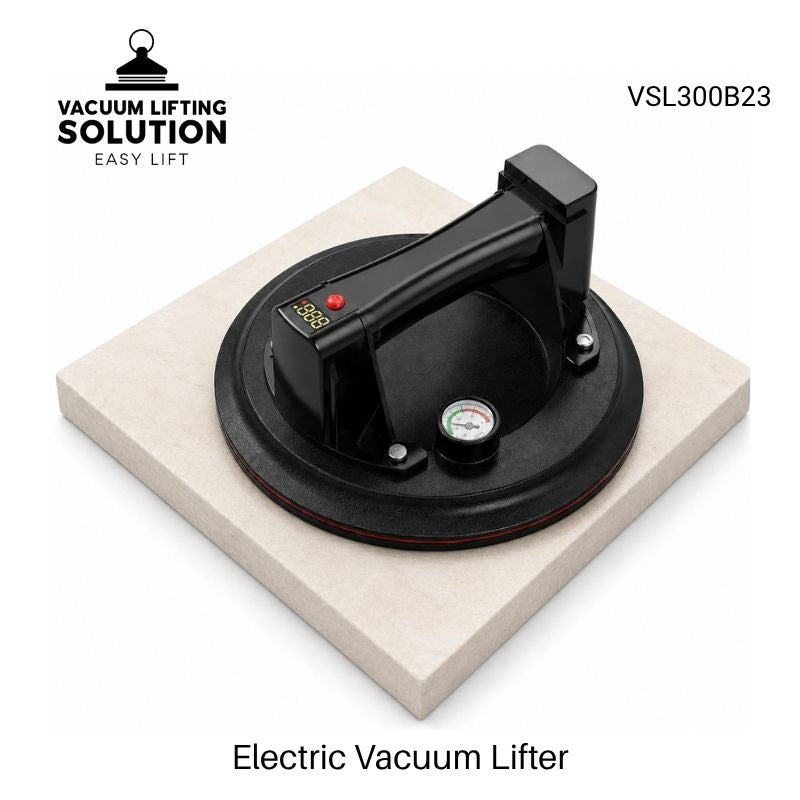

The VSL300B23 is a portable electric vacuum lifter designed for handling glass, tile, granite, marble, stone slabs, and smooth metal panels. With up to 300KG lifting capacity, a 230mm double-layer suction pad, automatic vacuum maintenance, and integrated pressure monitoring, it provides strong and stable suction for heavy material handling while remaining easy to carry and operate on jobsites.

Key Features of Portable Electric Vacuum Lifter VSL300B23

• Up to 300KG Lifting Capacity: Designed for heavy material handling on suitable smooth, flat, and non-porous surfaces.

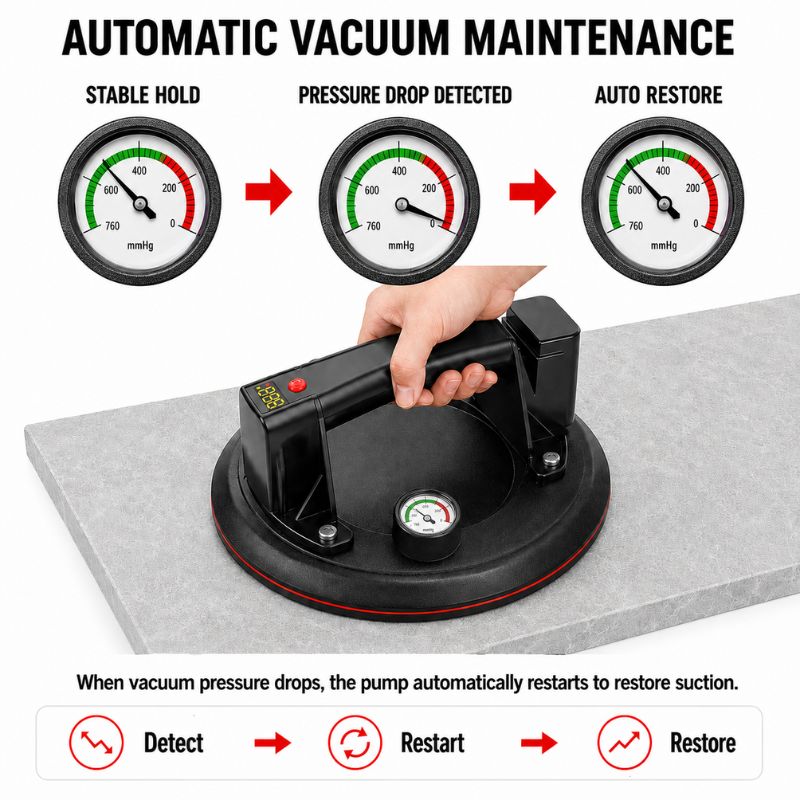

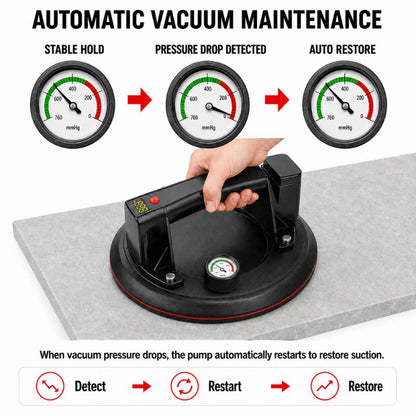

• Automatic Vacuum Maintenance: The built-in electric vacuum system automatically restores suction when pressure drops and stops pumping once sufficient vacuum is reached.

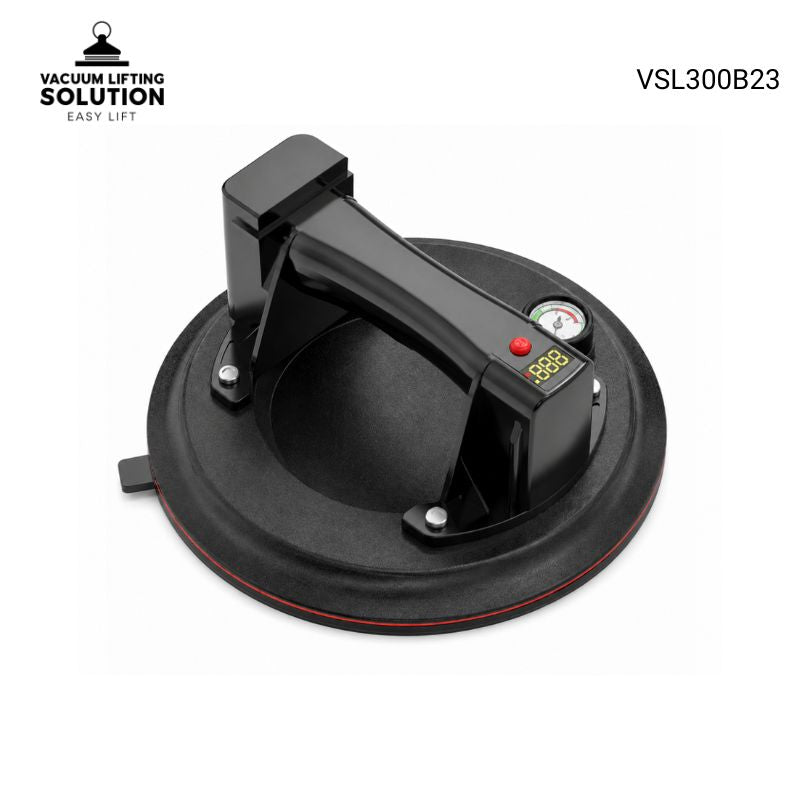

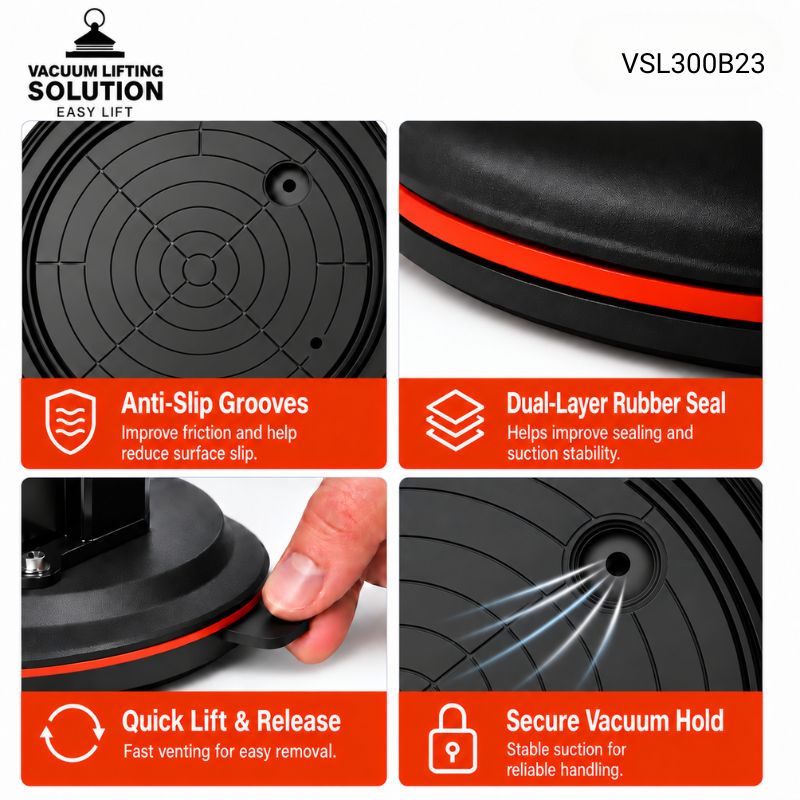

• 230mm Double-Layer Suction Pad: The large double-layer rubber pad improves sealing and provides a wider contact area for stable material handling.
• Dual Pressure Monitoring: A digital pressure display works together with the pointer pressure gauge, allowing operators to check suction status more directly during lifting.

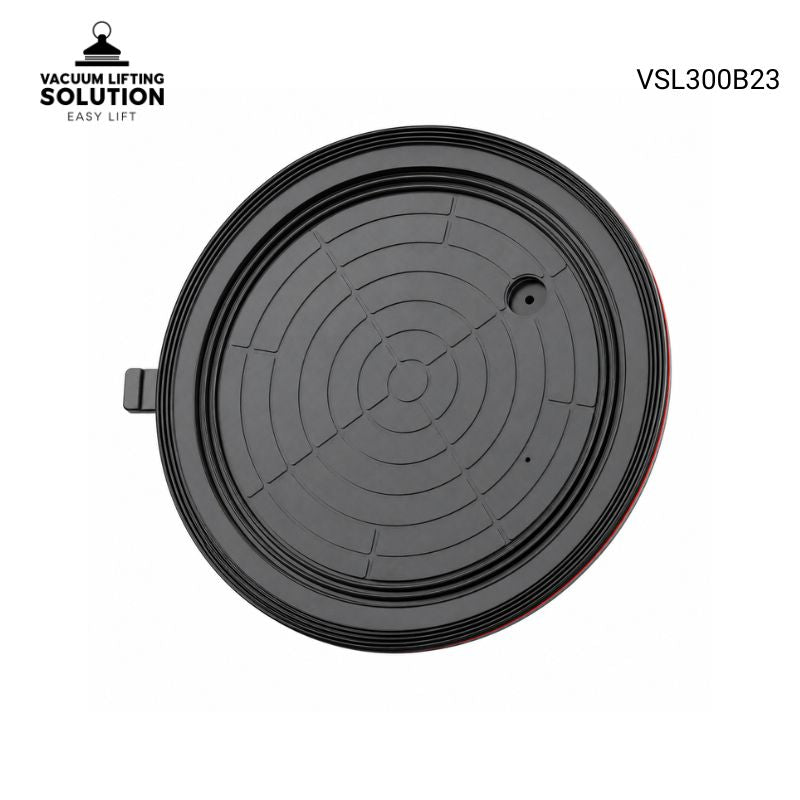

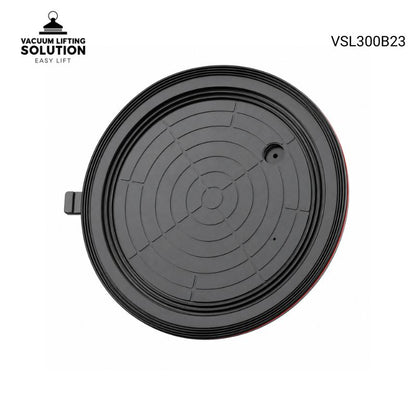

• Anti-Slip Groove Design: Special grooves on the suction surface increase friction and help reduce sideways movement when handling smooth tiles and panels.
• Cordless One-Button Operation: The removable 2600mAh battery and electric one-button control eliminate repeated manual pumping and make the lifter convenient for mobile installation work.

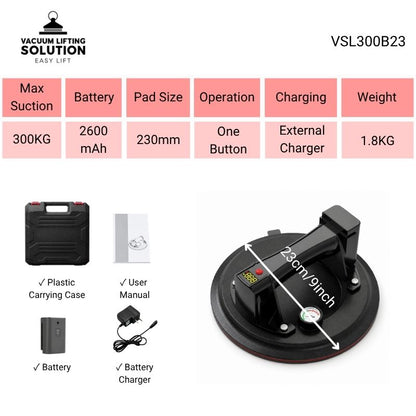

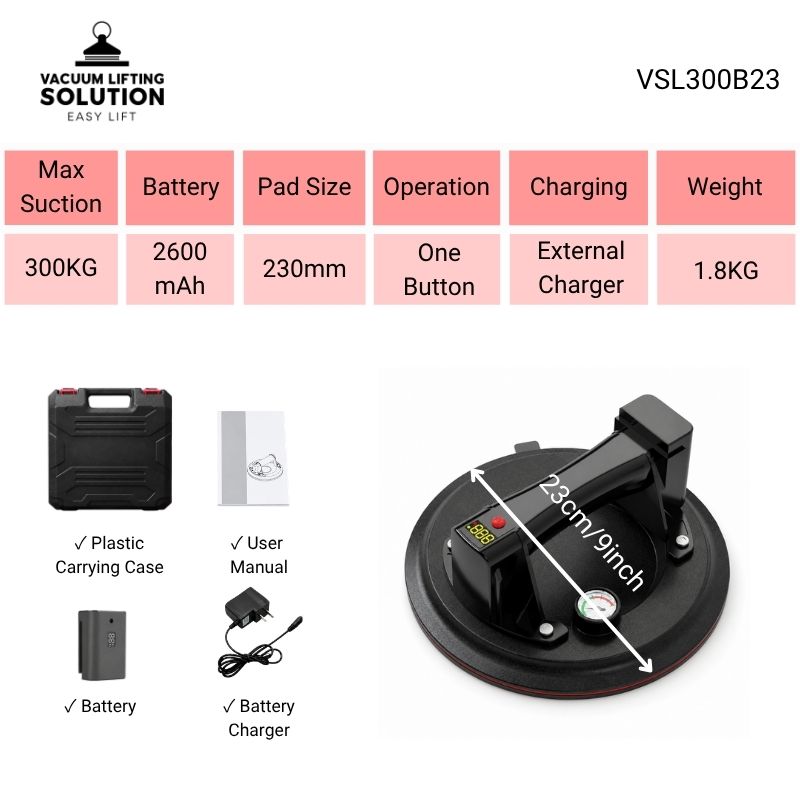

Technical Specifications

Electric Vacuum Lifter vs Manual Suction Cup

Traditional manual suction cups depend on repeated hand pumping to create and maintain vacuum. The VSL300B23 combines electric vacuum generation, automatic pressure maintenance, and real-time pressure monitoring in one portable lifting tool.

Electric vacuum lifters are especially suitable for frequent lifting and installation work where stable suction, portability, and reduced manual effort are important.

Applications of Electric Suction Cup Lifter VSL300B23

• Glass Handling – Suitable for lifting, moving, and positioning windows, mirrors, glass panels, and other smooth glass materials.
• Construction Panel Handling – Supports lifting and positioning smooth stone slabs, prefabricated panels, and other flat non-porous construction materials.
• Granite & Marble Handling – Suitable for polished granite, marble, quartz, and similar stone surfaces used in countertops and construction projects.
• Stone Slab Installation – Supports lifting and alignment of smooth stone slabs during fabrication, transport, and installation.
• Metal Panel Handling – Can be used for smooth sheet metal, coated panels, equipment covers, and other non-porous flat materials.
• Jobsite & Workshop Handling – Cordless operation makes it suitable for installers, contractors, fabricators, and workshops requiring portable material handling.

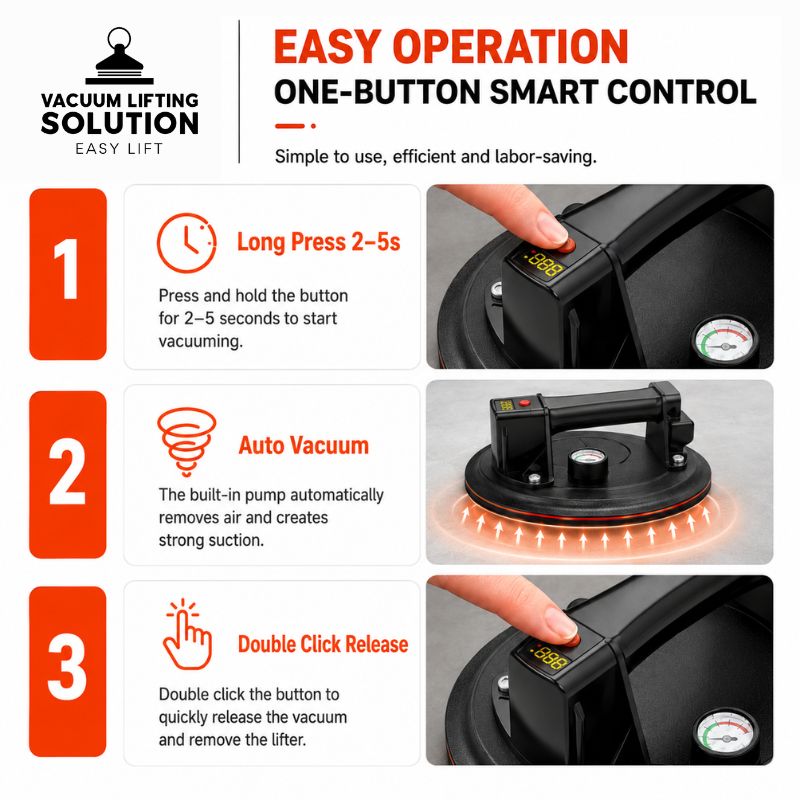

How Does an Electric Vacuum Lifter Work?

The VSL300B23 uses a built-in electric vacuum pump to remove air between the suction pad and the material surface, creating vacuum suction for stable lifting.

Step 1: Place the Suction Pad – Place the suction pad on a clean, smooth, and non-porous surface.

Step 2: Start Vacuum Suction – Press and hold the power button for 2–5 seconds. The built-in pump automatically creates vacuum suction.

Step 3: Lift & Move Materials – Once sufficient vacuum is established, lift and position the material using the handle.

Step 4: Quick Vacuum Release – Double-click the button to release the vacuum and remove the lifter.

Usage Tips for Best Suction Performance

To achieve the best suction performance and lifting stability, follow these simple usage guidelines:

• Use on Smooth & Non-Porous Surfaces: The VSL300B23 works best on clean, flat surfaces such as glass, tile, granite, marble, and metal panels.
• Keep the Suction Pad Clean: Remove dust, oil, and debris from the rubber pad and material surface before use.
• Check the Filter Element Regularly: Clean or replace the filter element when necessary to prevent dust buildup and maintain proper vacuum performance.
• Avoid Rough or Uneven Surfaces: Porous, textured, or uneven surfaces may reduce vacuum sealing performance.
• Maintain the Rubber Pad Condition: Keep the rubber pad clean and intact to ensure a reliable vacuum seal and stable suction.
• Verify Load Conditions Before Lifting: Actual lifting performance depends on the material surface, sealing condition, lifting orientation, and operating environment. Always verify secure vacuum attachment before lifting.

Which Electric Vacuum Lifter Is Right for Your Application?

Compare lifting capacity, suction pad size, and recommended use to select the right portable electric vacuum lifter for your application.

Choose VSL200B for general handling of glass, tile, marble, and other smooth materials when 200KG capacity is sufficient.

Choose VSL300B23 when you need up to 300KG lifting capacity while retaining a relatively compact 230mm suction pad.

Choose VSL300B for large glass, tile, stone slabs, and panels where a larger 260mm suction pad is suitable.

Beyond Standard Electric Vacuum Lifters

Vacuum Lifting Solution provides more than standard electric vacuum lifters. Based on BODENFLO’s miniature pump technology and product development experience, we support the development of integrated electric products with miniature pumps as the core.

From concept design to product development and manufacturing, we help customers create reliable and efficient vacuum solutions.
