200KG Electric Suction Cup 210mm Pad Portable Electric Vacuum Lifter for Glass Tile Granite Stone VSL200B
200KG Electric Suction Cup 210mm Pad Portable Electric Vacuum Lifter for Glass Tile Granite Stone VSL200B
Couldn't load pickup availability

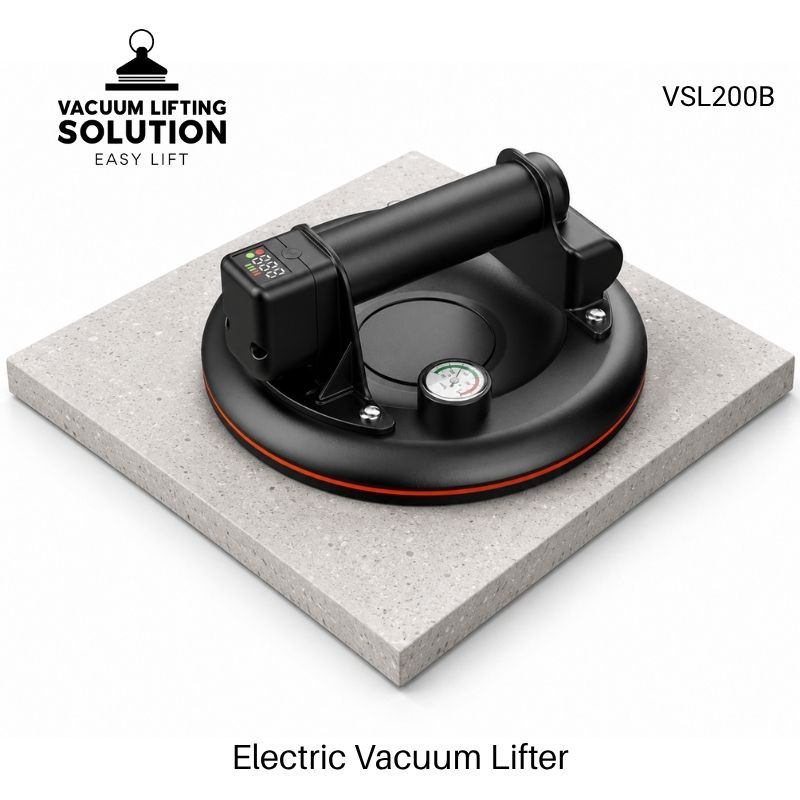

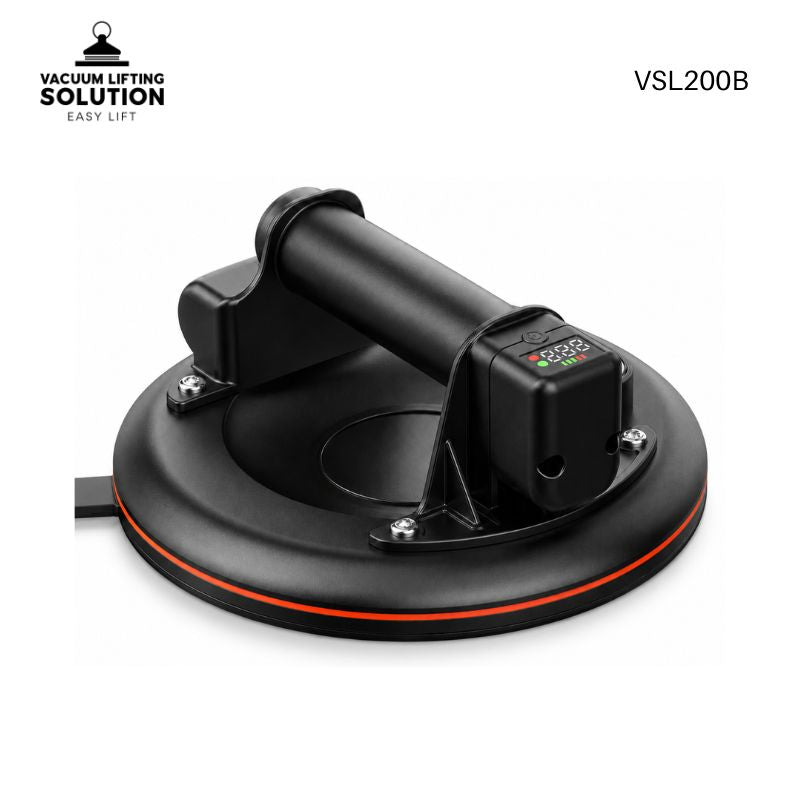

Overview of Electric Vacuum Lifter VSL200B
The VSL200B is a portable electric vacuum lifter designed for lifting and positioning glass, tiles, polished stone, panels, and other smooth flat materials. With 200KG suction, a 210mm suction pad, one-button operation, and a 5000mAh removable battery, it provides convenient cordless operation for installation and material handling.
Key Features of Electric Suction Cup VSL200B

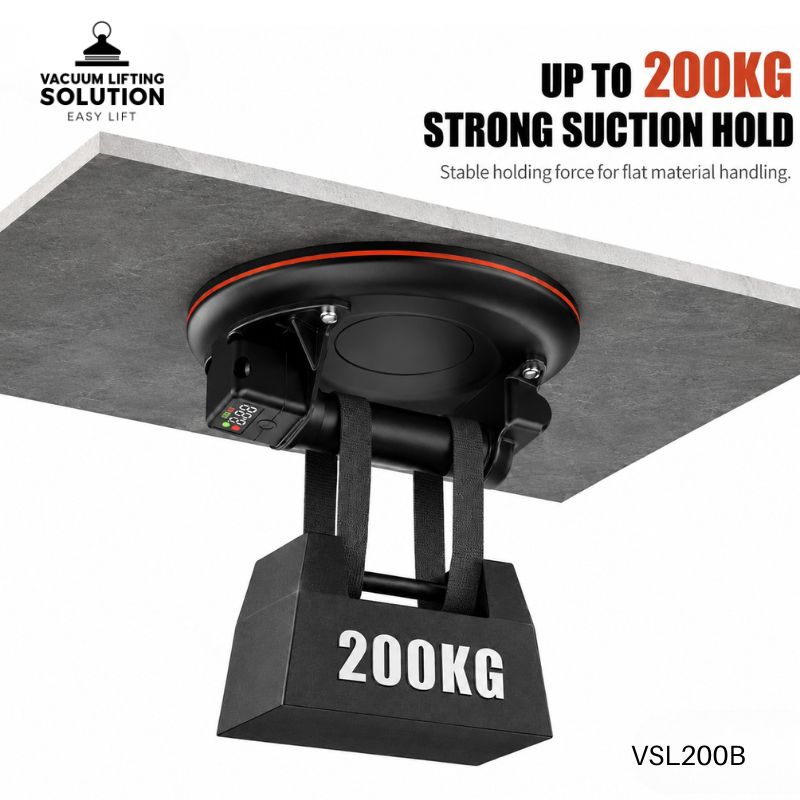

- 200KG Strong Suction: Provides strong holding force for lifting and positioning suitable smooth, flat materials.
- Built-In Electric Vacuum System: Creates vacuum automatically without repeated manual pumping.

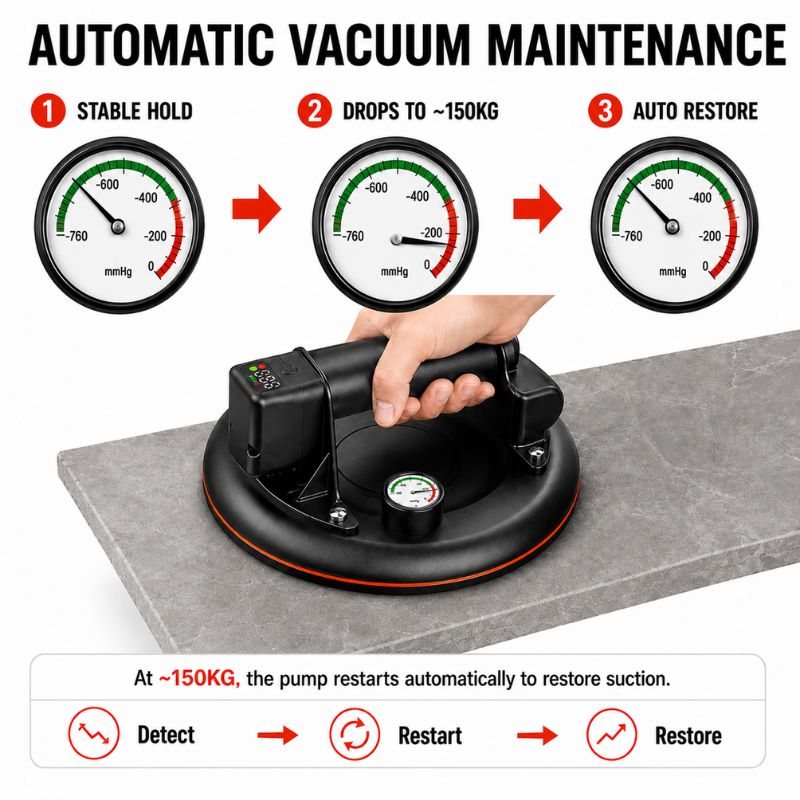

- Automatic Vacuum Maintenance: Restarts vacuum generation when suction weakens to help maintain a stable hold.
- One-Button Operation: Simple electric control for suction and quick release.

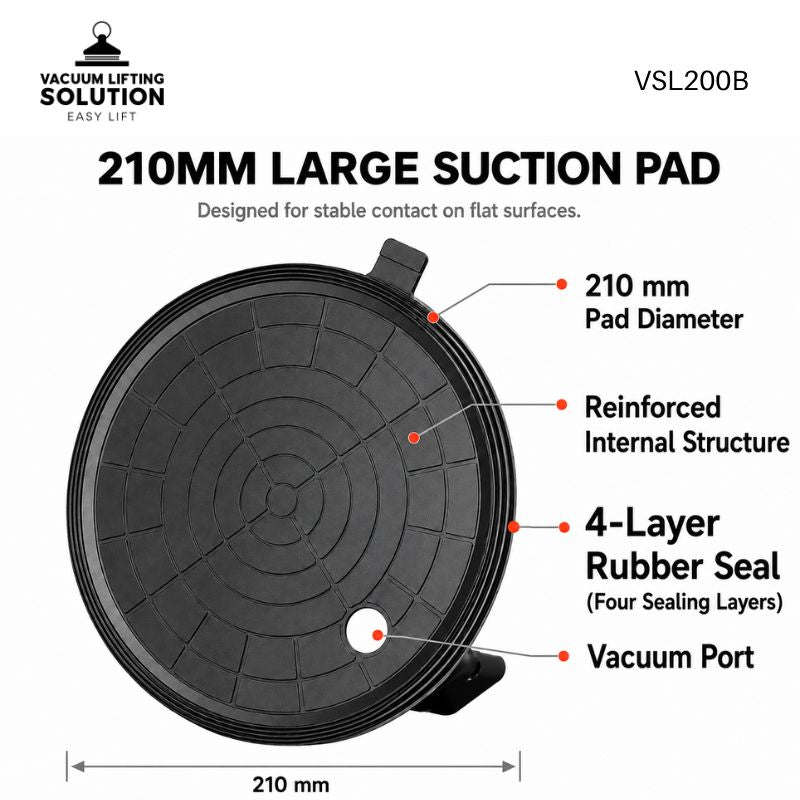

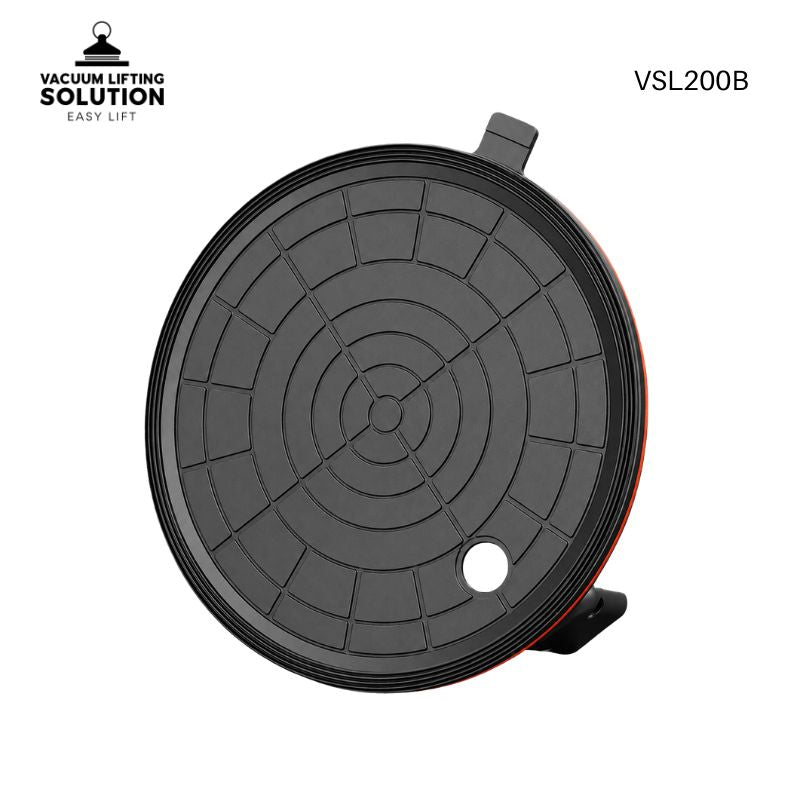

- 210mm Large Suction Pad: Provides a wide contact area for stable material handling.

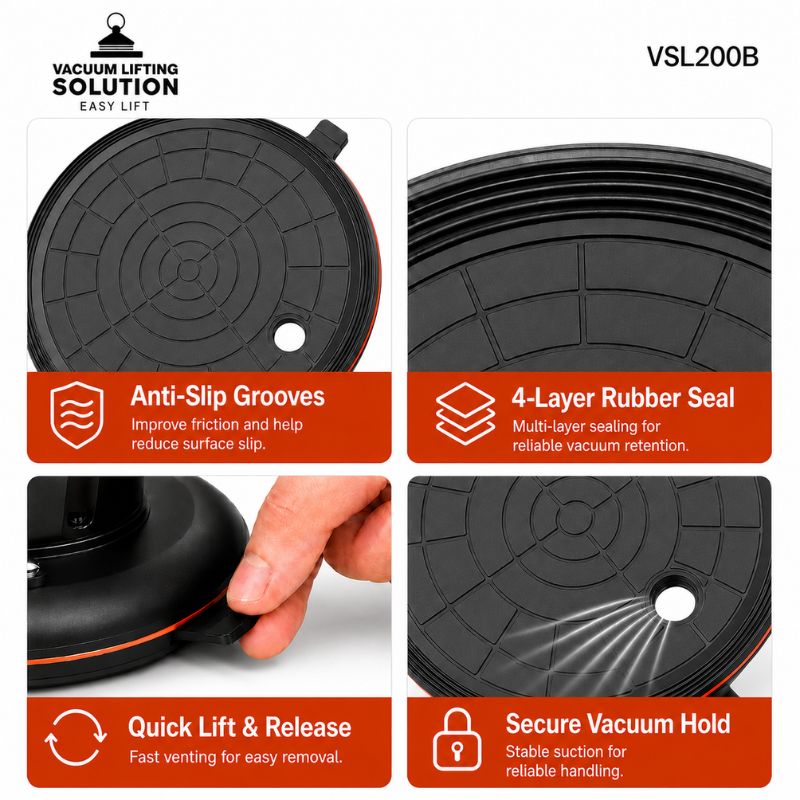

- 4-Layer Rubber Seal: Multi-layer sealing structure helps improve airtightness and vacuum retention.
- Digital Display & Vacuum Gauge: Makes operating and vacuum status easier to check.
- 5000mAh Removable Battery: Supports cordless use and external battery charging.

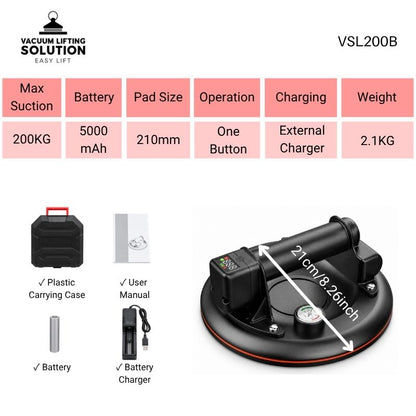

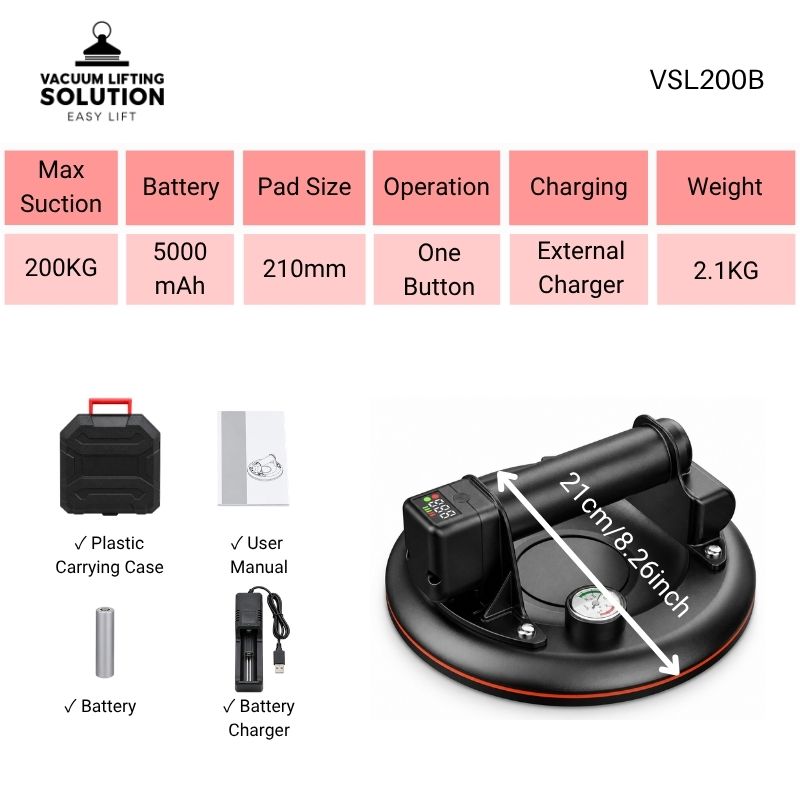

Technical Specifications
| Item | Specification |
|---|---|
| Product Name | 200KG Portable Electric Vacuum Lifter |
| Model | VSL200B |
| Max Suction | 200KG |
| Battery Capacity | 5000mAh |
| Suction Pad Diameter | 210mm |
| Operation Method | One-Button Control |
| Charging Method | External Charger |
| Product Weight | 2.1KG |
| Suction Surface | Smooth & Non-Porous Materials |
Package Includes
| Item | Quantity |
|---|---|
| Electric Vacuum Lifter | 1 |
| Removable Battery | 1 |
| Plastic Carrying Case | 1 |
| External Battery Charger | 1 |
| User Manual | 1 |

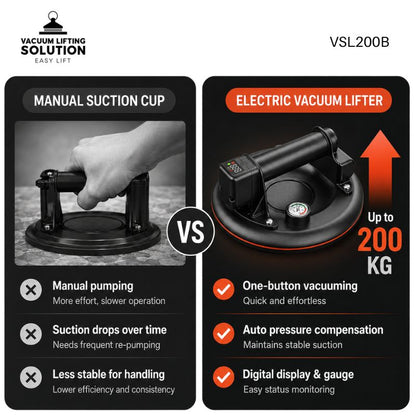

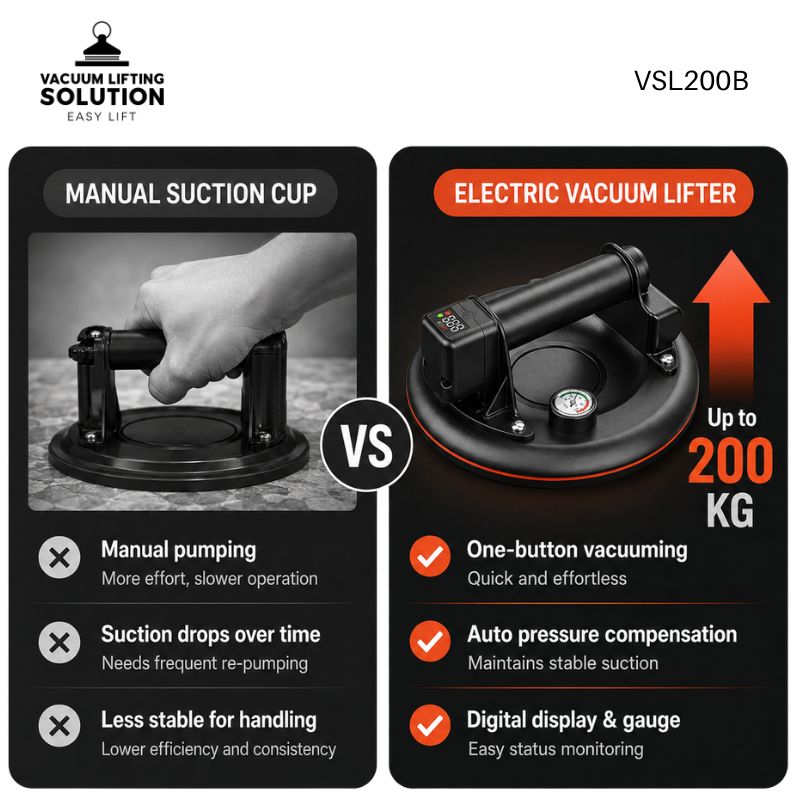

200KG Electric Vacuum Lifter vs Manual Suction Cup
Traditional manual suction cups require repeated hand pumping, while the VSL200B uses electric vacuum generation for easier and more efficient material handling.
| Feature | Electric Vacuum Lifter VSL200B | Manual Suction Cup |
|---|---|---|
| Vacuum Generation | Built-In Electric Vacuum Pump | Manual Pumping |
| Operation | One-Button Vacuum Control | Requires Repeated Hand Operation |
| Suction Stability | Automatic Vacuum Maintenance | Requires Manual Monitoring |
| Lifting Experience | Easy & Labor-Saving | More Physical Effort Required |
| Working Efficiency | Fast Vacuum Creation & Release | Slower Operation |
| Application | Glass, Tile & Stone Handling | Light & Occasional Handling |
Upgrade from manual pumping to faster and easier electric vacuum handling.

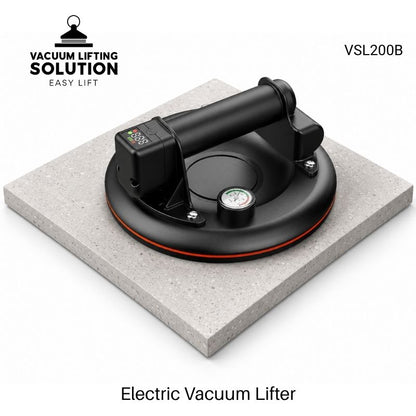

Applications of Electric Vacuum Cup VSL200B
- Glass Installation: For lifting and positioning glass panels, windows, mirrors, and other smooth glass surfaces.
- Tile Handling: Suitable for ceramic tiles, porcelain tiles, and large-format smooth tiles.
- Stone Slab Handling: For polished granite, marble, quartz, and other smooth stone surfaces.
- Panel Positioning: Helps move and position smooth furniture panels, laminated boards, and similar flat materials.
- Metal & Other Smooth Surfaces: Can be used on suitable smooth, flat, non-porous metal and sheet materials.

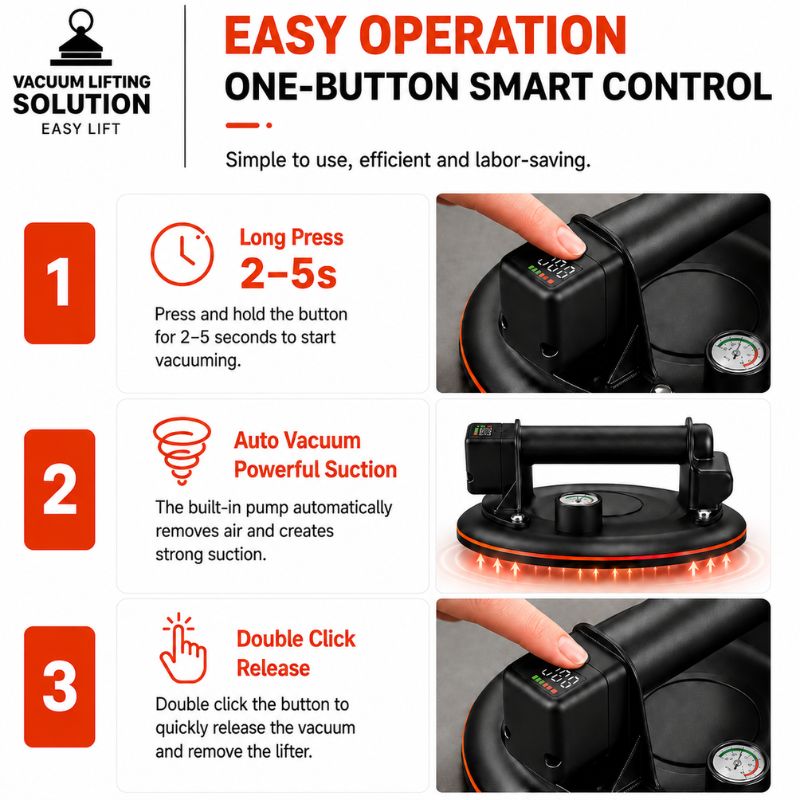

How Does an Electric Vacuum Lifter Work?
The VSL200B uses a built-in electric vacuum pump to remove air between the suction pad and the material surface, creating vacuum suction for stable lifting.
Step 1: Place the Suction Pad – Place the suction pad on a clean, smooth, and non-porous surface.
Step 2: Start Vacuum Suction – Press and hold the power button for 2–5 seconds. The built-in pump automatically creates vacuum suction.
Step 3: Lift & Move Materials – Once sufficient vacuum is established, lift and position the material using the handle.
Step 4: Quick Vacuum Release – Double-click the button to release the vacuum and remove the lifter.
Usage Tips for Best Suction Performance
To achieve the best suction performance and lifting stability, follow these simple usage guidelines:
- Use on Smooth & Non-Porous Surfaces: The VSL200B works best on clean, flat surfaces such as glass, tile, granite, marble, and metal panels.
- Keep the Suction Pad Clean: Remove dust, oil, and debris from the rubber pad and material surface before use.
- Check the Filter Element Regularly: Clean or replace the filter element when necessary to prevent dust buildup and maintain proper vacuum performance.
- Avoid Rough or Uneven Surfaces: Porous, textured, or uneven surfaces may reduce vacuum sealing performance.
- Maintain the Rubber Pad Condition: Keep the rubber pad clean and intact to ensure a reliable vacuum seal and stable suction.
Beyond Standard Electric Vacuum Lifters
Vacuum Lifting Solution provides more than standard electric vacuum lifters. Based on BODENFLO’s miniature pump technology and product development experience, we support the development of integrated electric products with miniature pumps as the core.
From concept design to product development and manufacturing, we help customers create reliable and efficient vacuum solutions.
Need a customized vacuum lifting solution?
Contact our engineering team: vacuumliftingsolution@gmail.com
