Electric Vacuum Gripper 24V 20kg Payload robotic arm vacuum gripper | VS70A-S1-M1.5

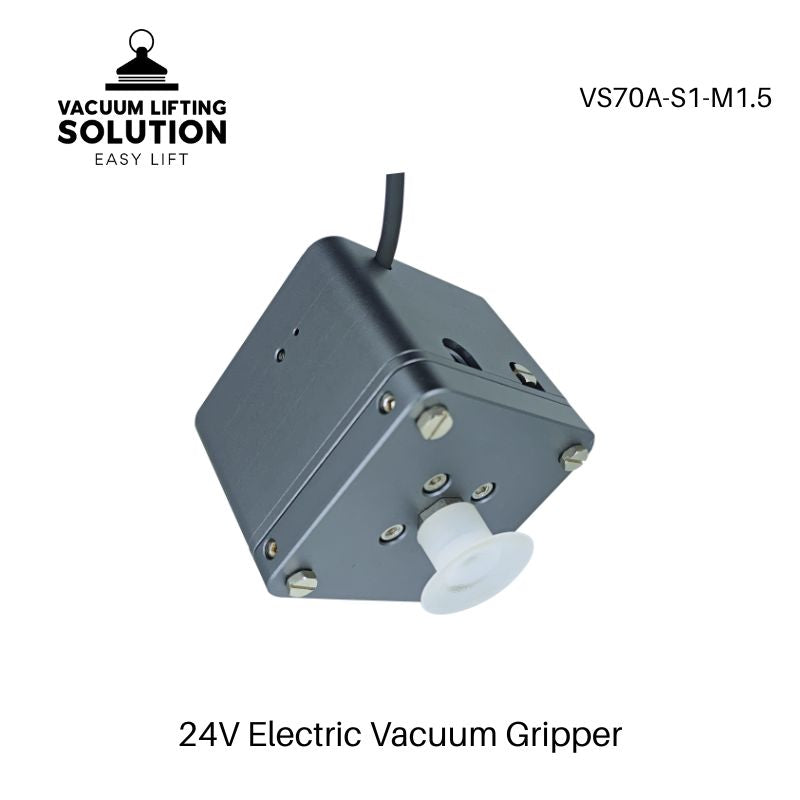

Overview of Electric Vacuum Gripper VS70A-S1-M1.5

The VS70A-S1-M1.5 is a compact electric vacuum gripper designed for cobots, robotic arms, and automated pick-and-place applications. Unlike traditional pneumatic vacuum grippers that require external air compressors, vacuum generators, and complicated tubing, it integrates vacuum generation, control, and gripping functions into one compact unit.

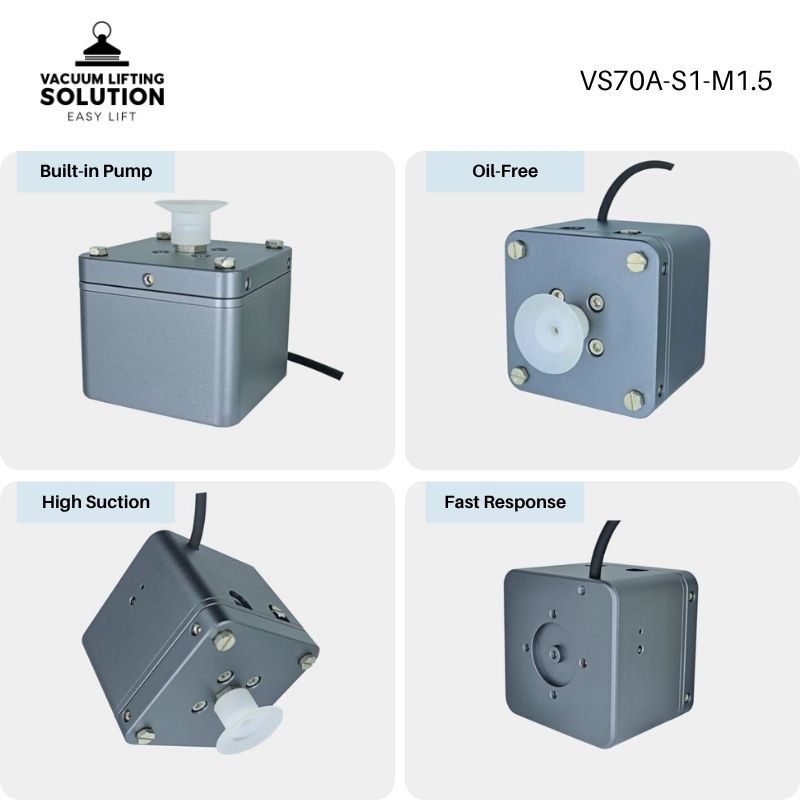

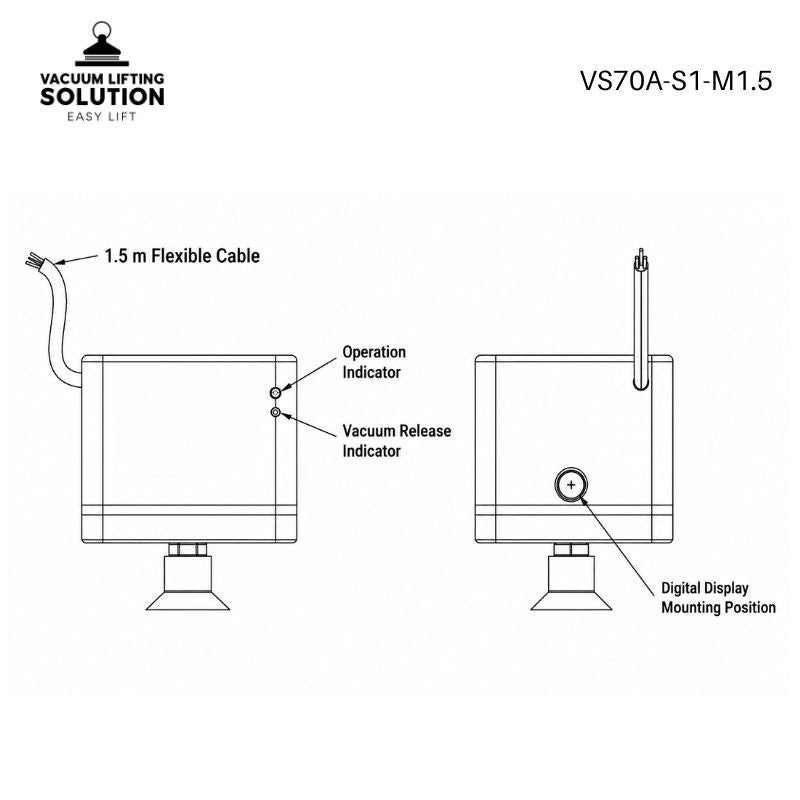

Key Features of Electric Vacuum Gripper VS70A-S1-M1.5

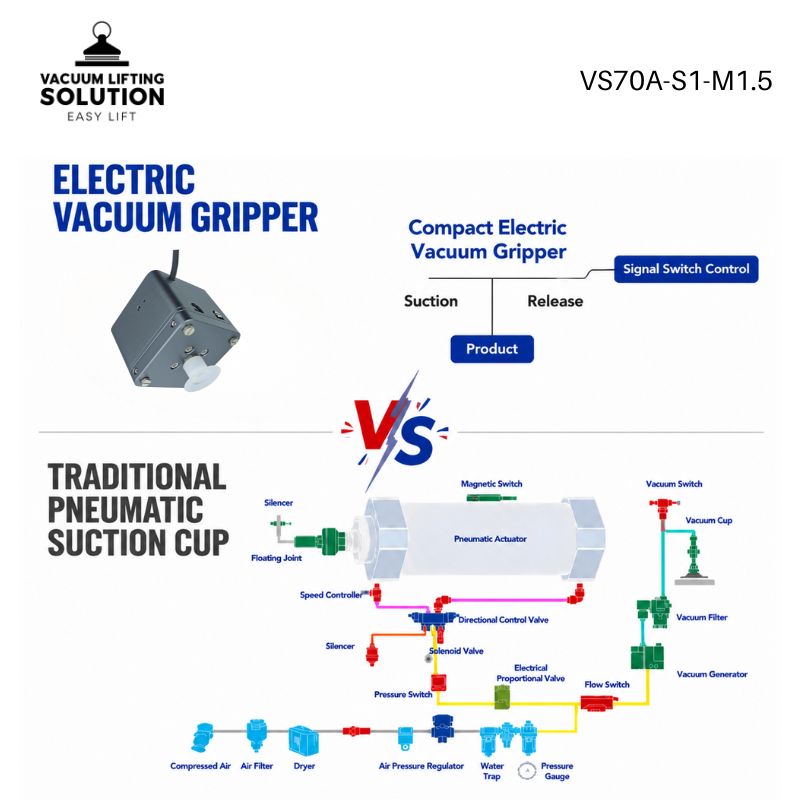

• No External Air Supply: The integrated electric vacuum system eliminates the need for an external air compressor, reducing installation complexity and operating costs.
• Compact All-in-One Design: Vacuum generation, control, and gripping are integrated into one compact unit, making installation easier in space-constrained automation systems.
• Powerful Vacuum Performance: Provides up to -70kPa vacuum pressure with a 20kg maximum payload for stable handling of various workpieces.
• Fast Response: Suction and release are completed in less than 0.3 seconds, supporting high-speed robotic pick-and-place applications.
• Easy Robot Integration: Supports 24V DC power and I/O control, allowing quick integration with cobots, robotic arms, and automation equipment.
• Clean & Quiet Operation: Oil-free electric vacuum technology delivers low-noise operation without continuous compressed air, making it ideal for clean production environments.

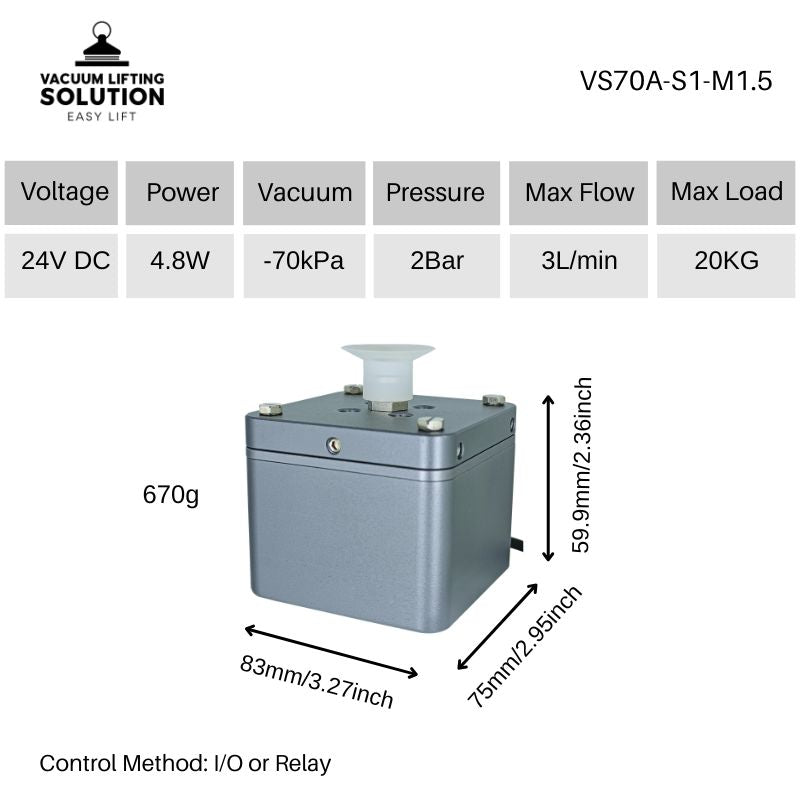

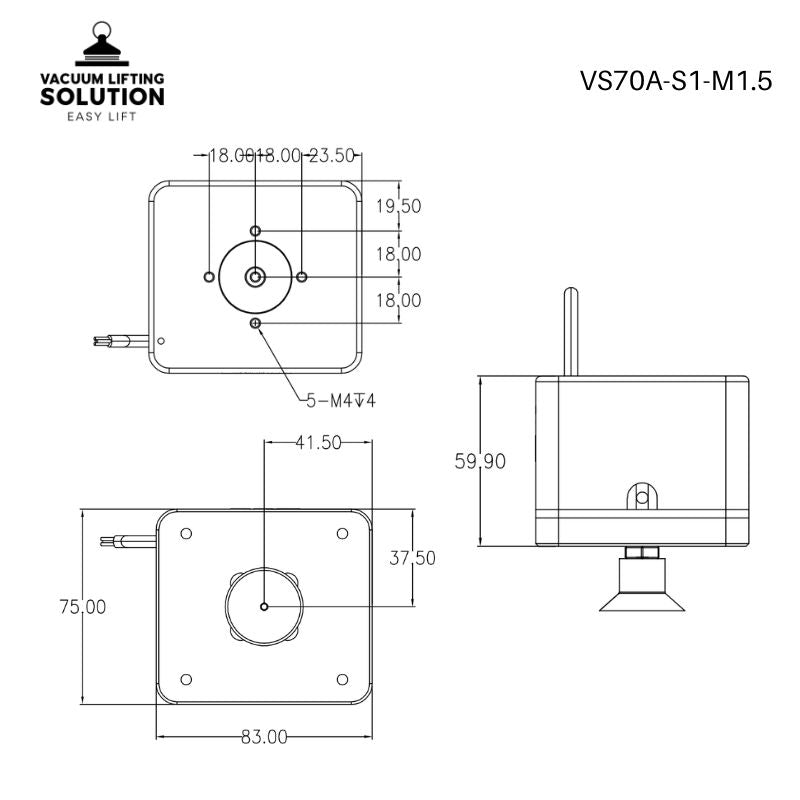

Technical Specifications

General Specifications

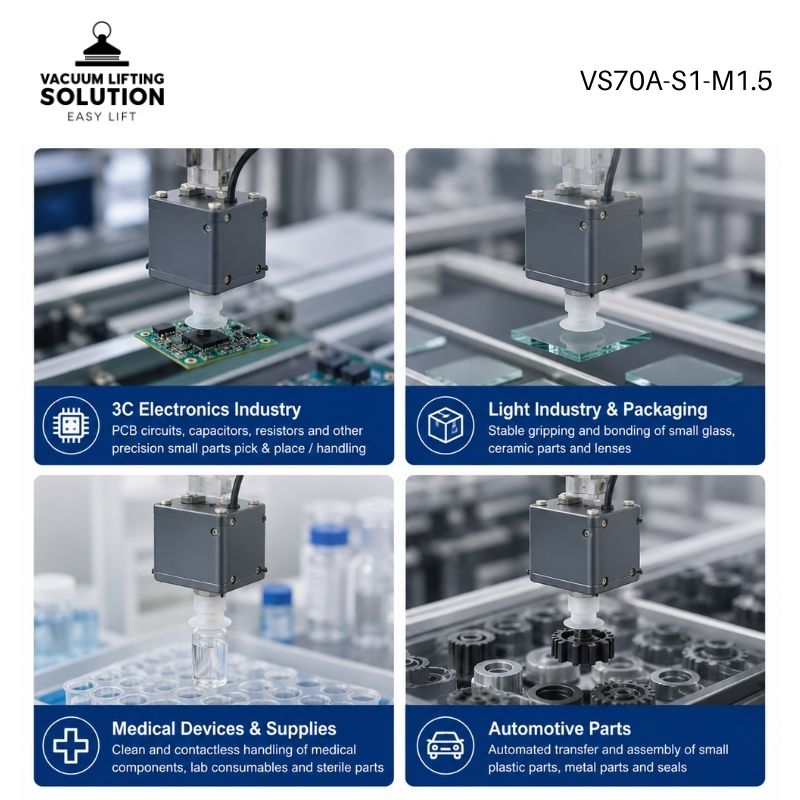

Applications of Electric Vacuum Gripper VS70A-S1-M1.5

• PCB Handling – Suitable for transferring and positioning PCB boards, circuit components, and electronic parts in electronics manufacturing and assembly processes.
• Electronics Assembly – Provides gentle and stable gripping for small electronic components, precision parts, and delicate workpieces that require careful handling.
• Packaging Automation – Supports pick-and-place operations in packaging lines, sorting systems, and product transfer equipment where flexible gripping is required.
• Plastic & Lightweight Parts Handling – Suitable for handling plastic components, molded parts, and lightweight products with smooth or non-porous surfaces.
• Robotic Pick and Place – Designed for compact robots, collaborative robots (cobots), and robotic arms performing high-speed material handling, assembly, and pick-and-place operations.

How Does an Electric Vacuum Gripper Work?

The VS70A-S1-M1.5 uses a built-in electric vacuum pump to generate negative pressure without requiring an external air compressor or pneumatic vacuum system. Once powered, the integrated control system automatically manages vacuum generation and release through simple I/O signals.

Working Process

1. Vacuum Generation
   The built-in electric vacuum pump generates negative pressure inside the gripper.
2. Workpiece Pickup
   The suction cup seals against the workpiece surface, creating vacuum force for secure gripping.
3. Material Handling
   The robot or cobot transports the workpiece while the vacuum is maintained automatically.
4. Vacuum Release
   The built-in control system opens the internal valve to quickly release the workpiece at the target position.

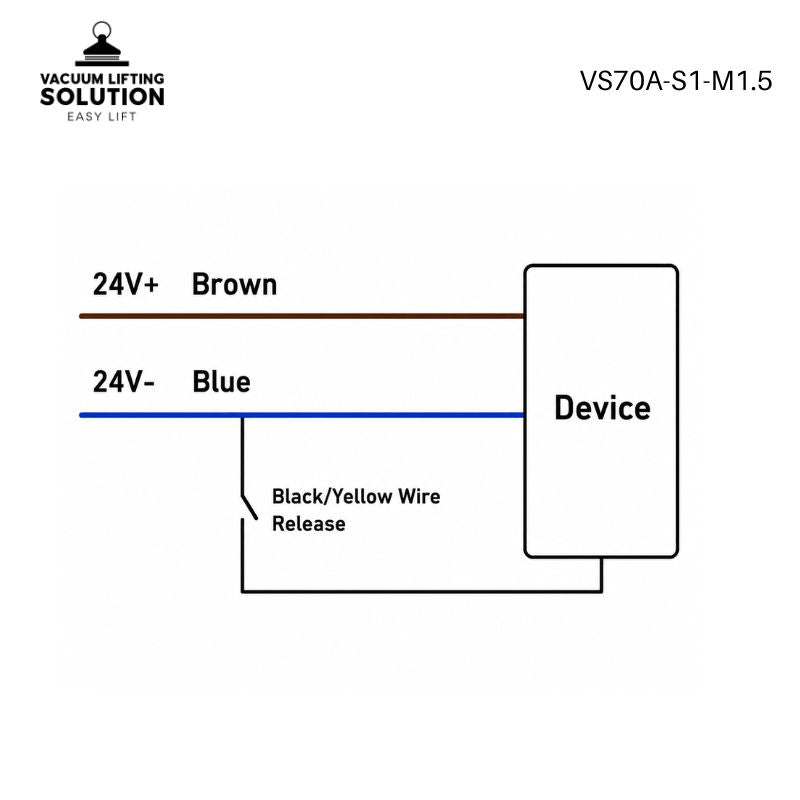

Electrical Wiring

• 24V+ : Power Supply Positive
• 24V- : Power Supply Ground
• Black/Yellow Wire: I/O Control Signal

Explore More Electric Vacuum Gripper Solutions

Vacuum Lifting Solution provides different electric vacuum grippers for robotic arms, cobots, and automated handling systems.

Customization Available

Suction cups, vacuum sensors, displays, regulators, and mounting accessories are available for different application requirements.

Need help selecting the right model? Contact our engineering team.

Beyond Standard Electric Vacuum Grippers

Vacuum Lifting Solution provides more than standard electric vacuum grippers. Based on BODENFLO’s miniature pump technology and years of complete product development experience, we help customers transform vacuum concepts into reliable products through system integration, engineering design, prototype development, testing, and OEM manufacturing support.

Need engineering support for your next vacuum product project?

Contact our engineering team: vacuumliftingsolution@gmail.com
